Rooting with root cause: finding a variant of a Project Zero bug

In this blog, I’ll look at CVE-2022-46395, a variant of Project Zero issue 2327 (CVE-2022-36449) and show how it can be used to gain arbitrary kernel code execution and root privileges from the untrusted app domain on an Android phone that uses the Arm Mali GPU. I used a Pixel 6 device for testing and reported the vulnerability to Arm on November 17, 2022. It was fixed in the Arm Mali driver version r42p0, which was released publicly on January 27, 2023, and fixed in Android in the May security update. I’ll go through imported memory in the Arm Mali driver, the root cause of Project Zero issue 2327, as well as exploiting a very tight race condition in CVE-2022-46395. A detailed timeline of this issue can be found here.

Imported memory in the Arm Mali driver

The Arm Mali GPU can be integrated in various devices (for example, see “Implementations” in Mali (GPU) Wikipedia entry). It has been an attractive target on Android phones and has been targeted by in-the-wild exploits multiple times.

In September 2022, Jann Horn of Google’s Project Zero disclosed a number of vulnerabilities in the Arm Mali GPU driver that were collectively assigned CVE-2022-36449. One of the issues, 2327, is particularly relevant to this research.

When using the Mali GPU driver, a user app first needs to create and initialize a kbase_context kernel object. This involves the user app opening the driver file and using the resulting file descriptor to make a series of ioctl calls. A kbase_context object is responsible for managing resources for each driver file that is opened and is unique for each file handle.

In particular, the kbase_context manages different types of memory that are shared between the GPU devices and user space applications. The Mali driver provides the KBASE_IOCTL_MEM_IMPORT ioctl that allows users to share memory with the GPU via direct I/O (see, for example, the “Performing Direct I/O” section here). In this setup, the shared memory is owned and managed by the user space application. While the kernel driver is using the memory, the get_user_pages function is used to increase the refcount of the user page so that it does not get freed while the kernel is using it.

Memory imported from user space using direct I/O are represented by a kbase_va_region with the KBASE_MEM_TYPE_IMPORTED_USER_BUF kbase_memory_type.

A kbase_va_region in the Mali GPU driver represents a shared memory region between the GPU device and the host device (CPU). It contains information such as the range of the GPU addresses and the size of the region. It also contains two kbase_mem_phy_alloc pointer fields, cpu_alloc and gpu_alloc, that are responsible for keeping track of the memory pages that are mapped to the GPU. In our setting, these two fields point to the same object, so I’ll only refer to them as the gpu_alloc from now on, and code snippets that use cpu_alloc should be understood to be applied to the gpu_alloc as well. In order to keep track of the pages that are currently being used by the GPU, the kbase_mem_phy_alloc contains an array, pages, that keeps track of these pages.

For KBASE_MEM_TYPE_IMPORTED_USER_BUF type of memory, the pages array in gpu_alloc is populated by using the get_user_pages function on the pages that are supplied by the user. This function increases the refcount of those pages, and then adds them to the pages array while they are in use by the GPU, and then removes them from pages and decreases their refcount once the GPU is no longer using the pages. This ensures that the pages won’t be freed while the GPU is using them.

Depending on whether the user passes the KBASE_REG_SHARED_BOTH flag when the memory is imported via the KBASE_IOCTL_MEM_IMPORT ioctl, the user pages are either added to pages when the memory region is imported (when KBASE_REG_SHARED_BOTH is set), or it is only added to pages when the memory is used at a later stage.

In the case where pages are populated when the memory is imported, the pages cannot be removed until the kbase_va_region and its gpu_alloc is freed. When KBASE_REG_SHARED_BOTH is not set and the pages are populated “on demand,” the memory management becomes more interesting.

Project zero issue 2327 (CVE-2022-36449)

When the pages of a KBASE_MEM_TYPE_IMPORTED_USER_BUF are not populated at import time, the memory can be used by submitting a GPU software job (“softjob”) that uses the imported memory as an external resource. I can submit a GPU job via the KBASE_IOCTL_JOB_SUBMIT ioctl with the BASE_JD_REQ_EXTERNAL_RESOURCES requirement, and specify the GPU address of the shared user memory as its external resource:

struct base_external_resource extres = {
    .ext_resource = user_buf_addr;           //<------ GPU address of the imported user buffer
  };
  struct base_jd_atom atom1 = {
    .atom_number = 0,
    .core_req = BASE_JD_REQ_EXTERNAL_RESOURCES,
    .nr_extres = 1,
    .extres_list = (uint64_t)&extres,
    ...
  };
  struct kbase_ioctl_job_submit js1 = {
    .addr = (uint64_t)&atom1,
    .nr_atoms = 1,
    .stride = sizeof(atom1)
  };
  ioctl(mali_fd, KBASE_IOCTL_JOB_SUBMIT, &js1);

When a software job requires external memory resources that are mapped as KBASE_MEM_TYPE_IMPORTED_USER_BUF, the function kbase_jd_user_buf_map is called to insert the user pages into the pages array of the gpu_alloc of the kbase_va_region via the kbase_jd_user_buf_pin_pages call:

static int kbase_jd_user_buf_map(struct kbase_context *kctx,
        struct kbase_va_region *reg)
{
    ...
    int err = kbase_jd_user_buf_pin_pages(kctx, reg);   //<------ inserts user pages
    ...
}

At this point, the user pages have their refcount incremented by get_user_pages and the physical addresses of their underlying memory are inserted into the pages array.

Once the software job finishes using the external resources, kbase_jd_user_buf_unmap is used for removing the user pages from the pages array and then decrementing their refcounts.

The pages array, however, is not the only way that these memory pages may be accessed. The kernel driver may also create memory mappings for these pages that allow them to be accessed from the GPU and the CPU, and these memory mappings should be removed before the pages are removed from the pages array. For example, kbase_unmap_external_resource, the caller of kbase_jd_user_buf_unmap, takes care to remove the memory mappings in the GPU by calling kbase_mmu_teardown_pages:

void kbase_unmap_external_resource(struct kbase_context *kctx,
        struct kbase_va_region *reg, struct kbase_mem_phy_alloc *alloc)
{
    ...
    case KBASE_MEM_TYPE_IMPORTED_USER_BUF: {
        alloc->imported.user_buf.current_mapping_usage_count--;
        if (alloc->imported.user_buf.current_mapping_usage_count == 0) {
            bool writeable = true;
            if (!kbase_is_region_invalid_or_free(reg) &&
                    reg->gpu_alloc == alloc)
                kbase_mmu_teardown_pages(                   //kbdev,
                        &kctx->mmu,
                        reg->start_pfn,
                        kbase_reg_current_backed_size(reg),
                        kctx->as_nr);
            if (reg && ((reg->flags & (KBASE_REG_CPU_WR | KBASE_REG_GPU_WR)) == 0))
                writeable = false;
            kbase_jd_user_buf_unmap(kctx, alloc, writeable);
        }
    }
    ...
}

It is also possible to create mappings from these userspace pages to the CPU by calling mmap on the Mali drivers file with an appropriate page offset. When the userspace pages are removed, these CPU mappings should be removed by calling the kbase_mem_shrink_cpu_mapping function to prevent them from being accessed from the mmap'ed user space addresses. This, however, was not done when user pages were removed from the KBASE_MEM_TYPE_IMPORTED_USER_BUF memory region, meaning that, once the refcounts of these user pages were reduced in kbase_jd_user_buf_unmap, these pages could be freed while CPU mappings to these pages created by the Mali driver still had access to them. This, in particular, meant that after these pages were freed, they could still be accessed from the user application, creating a use-after-free condition for memory pages that was easy to exploit.

Root cause analysis can sometimes be more of an art than a science and there can be many valid, but different views of what causes a bug. While at one level, it may look like it is simply a case where some cleanup logic is missing when the imported user memory is removed, the bug also highlighted an interesting deviation in how imported memory is managed in the Mali GPU driver.

In general, shared memory in the Mali GPU driver is managed via the gpu_alloc of the kbase_va_region and there are two different cases where the backing pages of a region can be freed. First, if the gpu_alloc and the kbase_va_region themselves are freed, then the backing pages of the kbase_va_region are also going to be freed. To prevent this from happening, when the backing pages are used by the kernel, references of the corresponding gpu_alloc and kbase_va_region are usually taken to prevent them from being freed. When a CPU mapping is created via kbase_cpu_mmap, a kbase_cpu_mapping structure is created and stored as the vm_private_data of the created virtual memory (vm) area. The kbase_cpu_mapping stores and increases the refcount of both the kbase_va_region and gpu_alloc, preventing them from being freed while the vm area is in use.

static int kbase_cpu_mmap(struct kbase_context *kctx,
        struct kbase_va_region *reg,
        struct vm_area_struct *vma,
        void *kaddr,
        size_t nr_pages,
        unsigned long aligned_offset,
        int free_on_close)
{
    struct kbase_cpu_mapping *map;
    int err = 0;
    map = kzalloc(sizeof(*map), GFP_KERNEL);
    ...
    vma->vm_private_data = map;
    ...
    map->region = kbase_va_region_alloc_get(kctx, reg);
    ...
    map->alloc = kbase_mem_phy_alloc_get(reg->cpu_alloc);
    ...
}

When the memory region is of type KBASE_MEM_TYPE_NATIVE, its backing pages are owned and maintained by memory region, the backing pages can also be freed by shrinking the backing store. For example, using the KBASE_IOCTL_MEM_COMMIT ioctl, would call kbase_mem_shrink to remove the backing pages:

int kbase_mem_shrink(struct kbase_context *const kctx,
        struct kbase_va_region *const reg, u64 new_pages)
{
    ...
    err = kbase_mem_shrink_gpu_mapping(kctx, reg,
            new_pages, old_pages);
    if (err >= 0) {
        /* Update all CPU mapping(s) */
        kbase_mem_shrink_cpu_mapping(kctx, reg,
                new_pages, old_pages);
        kbase_free_phy_pages_helper(reg->cpu_alloc, delta);
        ...
    }
    ...
}

In the above, both kbase_mem_shrink_gpu_mapping and kbase_mem_shrink_cpu_mapping are called to remove potential uses of the backing pages before they are freed. As kbase_mem_shrink frees the backing pages by calling kbase_free_phy_pages_helper, it only makes sense to shrink a region where the backing store is owned by the GPU. Even in this case, care must be taken to remove potential references to the backing pages before freeing them. For other types of memory, references to the backing pages may exist outside of the memory region, resizing it is generally forbidden and the pages array is immutable throughout the lifetime of the gpu_alloc. In this case, the backing pages should live as long as the gpu_alloc.

This makes the semantics of KBASE_MEM_TYPE_IMPORTED_USER_BUF region interesting. While it’s backing pages are owned by the user space application that creates it, as we have seen, its backing store, which is stored in the pages array of its gpu_alloc, can indeed change and backing pages can be freed while the gpu_alloc is still alive. Recall that if KBASE_REG_SHARED_BOTH is not set when the region is created, its backing store will only be set when it is used as an external resource in a GPU job, in which kbase_jd_user_buf_pin_pages is called to insert user pages to its backing store:

static int kbase_jd_user_buf_map(struct kbase_context *kctx,
        struct kbase_va_region *reg)
{
    ...
    int err = kbase_jd_user_buf_pin_pages(kctx, reg);   //<------ inserts user pages
    ...
}

The backing store then shrinks back to zero after the job has finished using the memory region by calling kbase_jd_user_buf_unmap. This, as we have seen, can result in cleanup logic from kbase_mem_shrink being omitted by mistake due to the need to reimplement complex memory management logic. However, this also means the backing store of a region can be removed without going through kbase_mem_shrink or freeing the region, which is unusual and may break the assumptions made in other parts of the code.

CVE-2022-46395

The idea is to look for code that accesses the backing store of a memory region and see if it implicitly assumes that the backing store is only removed when either of the followings happens:

1. When the memory region is freed, or
2. When the backing store is shrunk by the kbase_mem_shrink call

It turns out that the kbase_vmap_prot function had made these assumptions. The function kbase_vmap_prot is used by the driver to temporarily map the backing pages of a memory region to the kernel address space via vmap so that it can access them. It calls kbase_vmap_phy_pages to perform the mapping. To prevent the region from being freed while the vmap is valid, a kbase_vmap_struct is created for the lifetime of the mapping, which also holds a reference to the gpu_alloc of the kbase_va_region:

static int kbase_vmap_phy_pages(struct kbase_context *kctx,
        struct kbase_va_region *reg, u64 offset_bytes, size_t size,
        struct kbase_vmap_struct *map)
{
    ...
    map->cpu_alloc = reg->cpu_alloc;
    ...
    map->gpu_alloc = reg->gpu_alloc;
    ...
    kbase_mem_phy_alloc_kernel_mapped(reg->cpu_alloc);
    return 0;
}

The refcounts of map->cpu_alloc and map->gpu_alloc are incremented in kbase_vmap_prot before entering this function. To prevent the backing store from being shrunk by kbase_mem_commit, kbase_vmap_phy_pages also calls kbase_mem_phy_alloc_kernel_mapped, which increments kernel_mappings in the gpu_alloc:

static inline void
kbase_mem_phy_alloc_kernel_mapped(struct kbase_mem_phy_alloc *alloc)
{
    atomic_inc(&alloc->kernel_mappings);
}

This prevents kbase_mem_commit from shrinking the backing store of the memory region while it is mapped by kbase_vmap_prot, as kbase_mem_commit will check the kernel_mappings of a memory region:

int kbase_mem_commit(struct kbase_context *kctx, u64 gpu_addr, u64 new_pages)
{
    ...
    if (atomic_read(&reg->cpu_alloc->kernel_mappings) > 0)
        goto out_unlock;
    ...
}

When kbase_mem_shrink is used outside of kbase_mem_commit, it is always used within the jctx.lock of the corresponding kbase_context. As mappings created by kbase_vmap_prot are only valid with this lock held, other uses of kbase_mem_shrink cannot free the backing pages while the mappings are in use either.

However, as we have seen, a KBASE_MEM_TYPE_IMPORTED_USER_BUF memory region can remove its backing store without going through kbase_mem_shrink. In fact, the KBASE_IOCTL_STICKY_RESOURCE_UNMAP can be used to trigger kbase_unmap_external_resource to remove its backing pages without holding the jctx.lock of the kbase_context. This means that many uses of kbase_vmap_prot are vulnerable to a race condition that can remove its vmap'ed page while the mapping is in use, causing a use-after-free in the memory pages. For example, the KBASE_IOCTL_SOFT_EVENT_UPDATE ioctl calls the kbase_write_soft_event_status, which uses kbase_vmap_prot to create a mapping, and then unmap it after the kernel finishes writing to it:

static int kbasep_write_soft_event_status(
        struct kbase_context *kctx, u64 evt, unsigned char new_status)
{
    ...
    mapped_evt = kbase_vmap_prot(kctx, evt, sizeof(*mapped_evt),
                     KBASE_REG_CPU_WR, &map);
    //Race window start
    if (!mapped_evt)
        return -EFAULT;
    *mapped_evt = new_status;
    //Race window end
    kbase_vunmap(kctx, &map);
    return 0;
}

If the memory region that evt belongs to is of type KBASE_MEM_TYPE_IMPORTED_USER_BUF, then between kbase_vmap_prot and kbase_vunmap, the memory region can have its backing pages removed by another thread using the KBASE_IOCTL_STICKY_RESOURCE_UNMAP ioctl. There are other uses of kbase_vmap_prot in the driver, but they follow a similar usage pattern and the use in KBASE_IOCTL_SOFT_EVENT_UPDATE has a simpler call graph, so I’ll stick to it in this research.

The problem? The race window is very, very tiny.

Winning a tight race and widening the race window

The race window in this case is very tight and consists of very few instructions, so even hitting it is hard enough, let alone trying to free and replace the backing pages inside this tiny window. In the past, I’ve used a technique from Exploiting race conditions on [ancient] Linux of Jann Horn to widen the race window. While the technique can certainly be used to widen the race window here, it lacks the fine control in timing that I need here to hit the small race window. Fortunately, another technique that was also developed by Jann Horn in Racing against the clock—hitting a tiny kernel race window is just what I need here.

The main idea of controlling race windows on the Linux kernel using these techniques is to interrupt a task inside the race window, causing it to pause. By controlling the timing of interrupts and the length of these pauses, the race window can be widened to allow other tasks to run within it. In the Linux kernel, there are different ways in which a task can be interrupted.

The technique in Exploiting race conditions on [ancient] Linux uses task priorities to manipulate interrupts. The idea is to pin a low priority task on a CPU, and then run another task with high priority on the same CPU during the race window. The Linux kernel scheduler will then interrupt the low priority task to allow the high priority task to run. While this can stop the low priority task for a long time, depending on how long it takes the high priority task to run, it is difficult to control the precise timing of the interrupt.

The Linux kernel also provides APIs that allow users to schedule an interrupt at a precise time in the future. This allows more fine-grain control in the timing of the interrupts and was explored in Racing against the clock—hitting a tiny kernel race window. One such API is the timerfd. A timerfd is a file descriptor where its availability can be scheduled using the hardware timer. By using the timerfd_settime syscall, I can create a timerfd, and schedule it to be ready for use in a future time. If I have epoll instances that monitor the timerfd, then by the time the timerfd is ready, the epoll instances will be iterated through and be woken up.

  migrate_to_cpu(0);   //<------- pin this task to a cpu

  int tfd = timerfd_create(CLOCK_MONOTONIC, 0);   //<----- creates timerfd
  //Adds epoll watchers
  int epfds[NR_EPFDS];
  for (int i=0; i<NR_EPFDS; i++)
    epfds[i] = epoll_create1(0);

  for (int i=0; i<NR_EPFDS; i++) {
    struct epoll_event ev = { .events = EPOLLIN };
    epoll_ctl(epfd[i], EPOLL_CTL_ADD, fd, &ev);
  }

  timerfd_settime(tfd, TFD_TIMER_ABSTIME, ...);  //<----- schedule tfd to be available at a later time

  ioctl(mali_fd, KBASE_IOCTL_SOFT_EVENT_UPDATE,...); //<---- tfd becomes available and interrupts this ioctl

In the above, I created a timerfd, tfd, using timerfd_create, and then added epoll watchers to it using the epoll_ctl syscall. After this, I schedule tfd to be available at a precise time in the future, and then run the KBASE_IOCTL_SOFT_EVENT_UPDATE ioctl. If the tfd becomes available while the KBASE_IOCTL_SOFT_EVENT_UPDATE is running, then it’ll be interrupted and the epoll watchers of tfd are processed instead. By creating a large list of epoll watchers and scheduling tfd so that it becomes available inside the race window of KBASE_IOCTL_SOFT_EVENT_UPDATE, I can widen the race window enough to free and replace the backing stores of my KBASE_MEM_TYPE_IMPORTED_USER_BUF memory region. Having said that, the race window is still very difficult to hit and most attempts to trigger the bug will fail. This means that I need some ways to tell whether the bug has triggered before I continue with the next step of the exploit. Recall that the race window happens between the calls kbase_vmap_prot and kbase_vunmap:

static int kbasep_write_soft_event_status(
        struct kbase_context *kctx, u64 evt, unsigned char new_status)
{
    ...
    mapped_evt = kbase_vmap_prot(kctx, evt, sizeof(*mapped_evt),
                     KBASE_REG_CPU_WR, &map);
    //Race window start
    if (!mapped_evt)
        return -EFAULT;
    *mapped_evt = new_status;
    //Race window end
    kbase_vunmap(kctx, &map);
    return 0;
}

The call kbase_vmap_prot holds the kctx->reg_lock for almost the entire duration of the function:

void *kbase_vmap_prot(struct kbase_context *kctx, u64 gpu_addr, size_t size,
              unsigned long prot_request, struct kbase_vmap_struct *map)
{
    struct kbase_va_region *reg;
    void *addr = NULL;
    u64 offset_bytes;
    struct kbase_mem_phy_alloc *cpu_alloc;
    struct kbase_mem_phy_alloc *gpu_alloc;
    int err;
    kbase_gpu_vm_lock(kctx);         //reg_lock
    ...
out_unlock:
    kbase_gpu_vm_unlock(kctx);      //reg_lock
    return addr;
fail_vmap_phy_pages:
    kbase_gpu_vm_unlock(kctx);
    kbase_mem_phy_alloc_put(cpu_alloc);
    kbase_mem_phy_alloc_put(gpu_alloc);
    return NULL;
}

A common case of failure is when the interrupt happens during the kbase_vmap_prot function. In this case, the kctx->reg_lock, which is a mutex, is held. To test whether the mutex is held when the interrupt happens, I can make an ioctl call that requires the kctx->reg_lock during the interrupt from a different thread. There are many options, and I choose KBASE_IOCTL_MEM_FREE because this requires the kctx->reg_lock most of the time and can be made to return early if an invalid argument is supplied. If the kctx->reg_lock is held by KBASE_IOCTL_SOFT_EVENT_UPDATE (which calls kbase_vmap_prot) while the interrupt happens, then KBASE_IOCTL_MEM_FREE cannot proceed and would return after the KBASE_IOCTL_SOFT_EVENT_UPDATE. Otherwise, the KBASE_IOCTL_MEM_FREE ioctl will return first. By comparing the time when these ioctl calls return, I can determine whether the interrupt happened inside the kctx->reg_lock. Moreover, if the interrupt happens inside kbase_vmap_prot, then the address evt that I supplied to kbasep_write_soft_event_status would not have been written to.

So, if both of the following are true, then I know the interrupt must have happened before the race window ended, but not inside the kbase_vmap_prot function:

1. If an KBASE_IOCTL_MEM_FREE started during the interrupt in another thread returns before the KBASE_IOCTL_SOFT_EVENT_UPDATE
2. The address evt has not been written to

The above conditions, however, can still be true if the interrupt happens before kbase_vmap_prot. In this case, if I remove the backing pages from the KBASE_MEM_TYPE_IMPORTED_USER_BUF memory region, then the kbase_vmap_prot call would simply fail because the address evt, which belongs to the memory region, is no longer invalid. This then results in the KBASE_IOCTL_SOFT_EVENT_UPDATE returning an error.

This gives me an indicator of when the interrupt happened and whether I should proceed with the exploit or try triggering the bug again. To decide whether the race is won, I can then do the following during the interrupt:

1. Check if evt is written to, if it is, then the interrupt happened too late and the race was lost.
2. If evt is not written to, then make a KBASE_IOCTL_MEM_FREE ioctlfrom another thread. If the ioctl returns and before the KBASE_IOCTL_SOFT_EVENT_UPDATE ioctl that is being interrupted, then proceed to the next step, otherwise, the interrupt happened inside kbase_vmap_prots and the race was lost. (interrupt happens too early).
3. Proceed to remove the backing pages of the KBASE_MEM_TYPE_IMPORTED_USER_BUF region that evt belongs to. If the KBASE_IOCTL_SOFT_EVENT_UPDATE ioctl returns an error, then the interrupt happened before the kbase_vmap_prot call and the race was lost. Otherwise, the race is likely won and I can proceed to the next stage in the exploit.

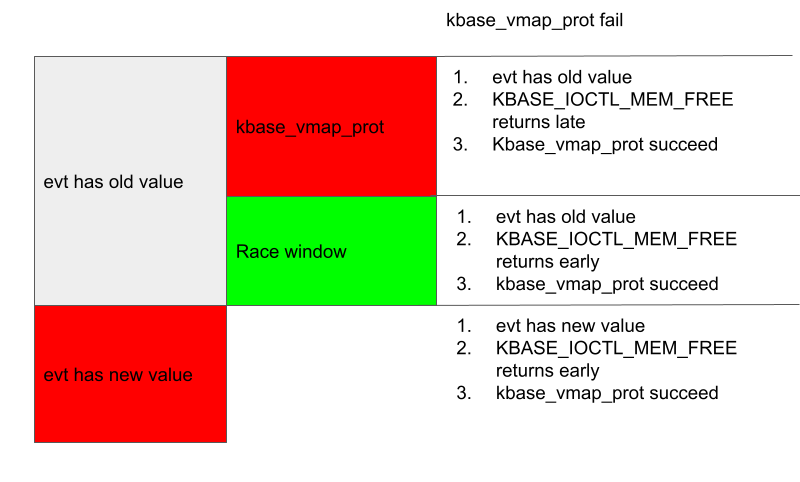

The following figure illustrates these conditions and their relations to the race window.

One byte to root them all

Once the race is won, I can proceed to free and then replace the backing pages of the KBASE_MEM_TYPE_IMPORTED_USER_BUF region. Then, after the interrupt returns, KBASE_IOCTL_SOFT_EVENT_UPDATE will write new_status to the free’d (and now replaced) backing page of the KBASE_MEM_TYPE_IMPORTED_USER_BUF region via the kernel address created by vmap.

I’d like to replace those pages with memory pages used by the kernel. The problem here is that memory pages in the Linux kernel are allocated according to their zones and migrate type, and pages do not generally get allocated to a different zone or migrate type. In our case, the backing pages of the KBASE_MEM_TYPE_IMPORTED_USER_BUF come from a user space application, which are generally allocated with the GFP_HIGHUSER or the GFP_HIGHUSER_MOVABLE flag. On Android, which lacks the ZONE_HIGHMEM zone, this translates into an allocation in the ZONE_NORMAL with MIGRATE_UNMOVABLE (for GFP_HIGHUSER flag), or MIGRATE_MOVABLE (for GFP_HIGHUSER_MOVABLE flag) migrate type. Memory pages used by the kernel, such as those used by the SLUB allocator for allocating kernel objects, on the other hand, are allocated in the ZONE_NORMAL with MIGRATE_UNMOVABLE migration type. Many user space memory, such as those allocated via the mmap syscall, are allocated with the GFP_HIGHUSER_MOVABLE flag, making them unsuitable for my purpose. In order to replace the backing pages with kernel memory pages, I therefore need to find a way to map pages to user space that are allocated with the GFP_HIGHUSER flag.

The situation is similar to what I had with “The code that wasn’t there: Reading memory on an Android device by accident.” In the section “Leaking Kernel memory,” I used the asynchronous I/O file system to allocate user space memory with the GFP_HIGHUSER flag. By first allocating user space memory with the asynchronous I/O file system and then importing that memory to the Mali driver to create a KBASE_MEM_TYPE_IMPORTED_USER_BUF region with that memory as backing pages, I can create a KBASE_MEM_TYPE_IMPORTED_USER_BUF memory region with backing pages in ZONE_NORMAL and the MIGRATE_UNMOVABLE migrate type, which can be reused as kernel pages.

One big problem with bugs in kbase_vmap_prot is that, in all uses of kbase_vmap_prot, there is very little control of the write value. In the case of the KBASE_IOCTL_SOFT_EVENT_UPDATE, it is only possible to write either zero or one to the chosen address:

static int kbasep_write_soft_event_status(
        struct kbase_context *kctx, u64 evt, unsigned char new_status)
{
    ...
    if ((new_status != BASE_JD_SOFT_EVENT_SET) &&
        (new_status != BASE_JD_SOFT_EVENT_RESET))
        return -EINVAL;
    mapped_evt = kbase_vmap_prot(kctx, evt, sizeof(*mapped_evt),
                     KBASE_REG_CPU_WR, &map);
    ...
    *mapped_evt = new_status;
    kbase_vunmap(kctx, &map);
    return 0;
}

In the above, new_status, which is the value to be written to the address evt, is checked to ensure that it is either BASE_JD_SOFT_EVENT_SET, or BASE_JD_SOFT_EVENT_RESET, which are one or zero, respectively.

Even though the write primitive is rather restrictive, by replacing the backing page of my KBASE_MEM_TYPE_IMPORTED_USER_BUF region with page table global directories (PGD) used by the kernel, or with pages used by the SLUB allocator, I still have a fairly strong primitive.

However, since the bug is rather difficult to trigger, ideally, I’d like to be able to replace the backing page reliably and finish the exploit by triggering the bug once only. This makes replacing the pages with kernel PGD or SLUB allocator backing pages less than ideal here, so let’s have a look at another option.

While most kernel objects are allocated via variants of the kmalloc call, which uses the SLUB allocator to allocate the object, large objects are sometimes allocated using variants of the vmalloc call. Unlike kmalloc, vmalloc allocates memory at the granularity of pages and it takes the page directly from the kernel page allocator. While vmalloc is inefficient for small locations, for allocations of objects larger than the size of a page, vmalloc is often considered a more optimal choice. It is also considered more secure as the allocated memory is used exclusively by the allocated object and a guard page is often inserted at the end of the memory. This means that any out-of-bounds access is likely to either hit unused memory or the guard page. In our case, however, replacing the backing page with a vmalloc object is just what I need. To optimize allocation, the kernel page allocator maintains a per CPU cache which it uses to keep track of pages that are recently freed on each CPU. New allocations from the same CPU are simply given the most recently freed page on that CPU from the per CPU cache. So by freeing the backing pages of a KBASE_MEM_TYPE_IMPORTED_USER_BUF region on a CPU, and then immediately allocating an object via vmalloc, the newly allocated object will reuse the backing pages of the KBASE_MEM_TYPE_IMPORTED_USER_BUF region. This allows me to write either zero or one to any offset in this object. A suitable object allocated by vzalloc (a variant of vmalloc that zeros out the allocated memory) is none but the kbase_mem_phy_alloc itself. The object is created by kbase_alloc_create, which can be triggered via many ioctl calls such as the KBASE_IOCTL_MEM_ALLOC:

static inline struct kbase_mem_phy_alloc *kbase_alloc_create(
        struct kbase_context *kctx, size_t nr_pages,
        enum kbase_memory_type type, int group_id)
{
    ...
    size_t alloc_size = sizeof(*alloc) + sizeof(*alloc->pages) * nr_pages;
    ...
    /* Allocate based on the size to reduce internal fragmentation of vmem */
    if (alloc_size > KBASE_MEM_PHY_ALLOC_LARGE_THRESHOLD)
        alloc = vzalloc(alloc_size);
    else
        alloc = kzalloc(alloc_size, GFP_KERNEL);
    ...
}

When creating a kbase_mem_phy_alloc object, the allocation size, alloc_size depends on the size of the region to be created. If alloc_size is larger than the KBASE_MEM_PHY_ALLOC_LARGE_THRESHOLD, then vzalloc is used for allocating the object. By making a KBASE_IOCTL_MEM_ALLOC ioctl call immediately after the KBASE_IOCTL_STICKY_RESOURCE_UNMAP ioctl call that frees the backing pages of a KBASE_MEM_TYPE_IMPORTED_USER_BUF memory region, I can reliably replace the backing page with a kernel page that holds a kbase_mem_phy_alloc object:

ioctl(mali_fd, KBASE_IOCTL_STICKY_RESOURCE_UNMAP, ...);  //<------ frees backing page
ioctl(mali_fd, KBASE_IOCTL_MEM_ALLOC, ...);              //<------ reclaim backing page as kbase_mem_phy_alloc

So, what should I rewrite in this object? There are many options, for example, rewriting the kref field can easily cause a refcounting problem and turn this into a UAF of a kbase_mem_phy_alloc, which is easy to exploit. It is, however, much simpler to just set the gpu_mappings field to zero:

struct kbase_mem_phy_alloc {
    struct kref           kref;
    atomic_t              gpu_mappings;
    atomic_t              kernel_mappings;
    size_t                nents;
    struct tagged_addr    *pages;
    ...
}

The Mali driver allows memory regions to share the same backing pages via the KBASE_IOCTL_MEM_ALIAS ioctl call. A memory region created by KBASE_IOCTL_MEM_ALLOC can be aliased by passing it as a parameter in the call to KBASE_IOCTL_MEM_ALIAS:

  union kbase_ioctl_mem_alloc alloc = ...;
  ...
  ioctl(mali_fd, KBASE_IOCTL_MEM_ALLOC, &alloc);
  void* region = mmap(NULL, ..., mali_fd, alloc.out.gpu_va);
  union kbase_ioctl_mem_alias alias = ...;
  ...
  struct base_mem_aliasing_info ai = ...;
  ai.handle.basep.handle = (uint64_t)region;
  ...
  alias.in.aliasing_info = (uint64_t)(&ai);
  ioctl(mali_fd, KBASE_IOCTL_MEM_ALIAS, &alias);
  void* alias_region = mmap(NULL, ..., mali_fd,  alias.out.gpu_va);

In the above, a memory region is created using KBASE_IOCTL_MEM_ALLOC, and mapped to region. This region is then passed to the KBASE_IOCTL_MEM_ALIAS call. After mapping the result to user space, both region and alias_region share the same backing pages. As both regions now share the same backing pages, region must be prevented from resizing via the KBASE_IOCTL_MEM_COMMIT ioctl, otherwise the backing pages may be freed while it is still mapped to the alias_region:

  union kbase_ioctl_mem_alloc alloc = ...;
  ...
  ioctl(mali_fd, KBASE_IOCTL_MEM_ALLOC, &alloc);
  void* region = mmap(NULL, ..., mali_fd, alloc.out.gpu_va);
  union kbase_ioctl_mem_alias alias = ...;
  ...
  struct base_mem_aliasing_info ai = ...;
  ai.handle.basep.handle = (uint64_t)region;
  ...
  alias.in.aliasing_info = (uint64_t)(&ai);
  ioctl(mali_fd, KBASE_IOCTL_MEM_ALIAS, &alias);
  void* alias_region = mmap(NULL, ..., mali_fd,  alias.out.gpu_va);

  struct kbase_ioctl_mem_commit commit = ...;
  commit.gpu_addr = (uint64_t)region;
  ioctl(mali_fd, KBASE_IOCTL_MEM_COMMIT, &commit);  //<---- ioctl fail as region cannot be resized

This is achieved using the gpu_mappings field in the gpu_alloc of a kbase_va_region. The gpu_mappings field keeps track of the number of memory regions that are sharing the same backing pages. When a region is aliased, gpu_mappings is incremented:

u64 kbase_mem_alias(struct kbase_context *kctx, u64 *flags, u64 stride,
            u64 nents, struct base_mem_aliasing_info *ai,
            u64 *num_pages)
{
    ...
    for (i = 0; i < nents; i++) {
        if (ai[i].handle.basep.handle > PAGE_SHIFT) <gpu_alloc;
            ...
            kbase_mem_phy_alloc_gpu_mapped(alloc);  //gpu_mappings
        }
        ...
    }
    ...
}

The gpu_mappings is checked in the KBASE_IOCTL_MEM_COMMIT call to ensure that the region is not mapped multiple times:

int kbase_mem_commit(struct kbase_context *kctx, u64 gpu_addr, u64 new_pages)
{
    ...
    if (atomic_read(&reg->gpu_alloc->gpu_mappings) > 1)
        goto out_unlock;
    ...
}

So, by overwriting gpu_mappings of a memory region to zero, I can cause an aliased memory region to pass the above check and have its backing store resized. This then causes its backing pages to be removed without removing the alias mappings. In particular, after shrinking the backing store, the alias region can be used to access backing pages that are already freed.

The situation is now very similar to what I had in “Corrupting memory without memory corruption” and I can apply the technique from the section, “Breaking out of the context,” to this bug.

To recap, I now have a kbase_va_region whose backing pages are already freed and I’d like to reuse these freed backing pages so I can gain read and write access to arbitrary memory. To understand how this can be done, we need to know how backing pages to a kbase_va_region are allocated.

When allocating pages for the backing store of a kbase_va_region, the kbase_mem_pool_alloc_pages function is used:

int kbase_mem_pool_alloc_pages(struct kbase_mem_pool *pool, size_t nr_4k_pages,
        struct tagged_addr *pages, bool partial_allowed)
{
    ...
    /* Get pages from this pool */
    while (nr_from_pool--) {
        p = kbase_mem_pool_remove_locked(pool);     //next_pool) {
        /* Allocate via next pool */
        err = kbase_mem_pool_alloc_pages(pool->next_pool,      //<----- 2.
                nr_4k_pages - i, pages + i, partial_allowed);
        ...
    } else {
        /* Get any remaining pages from kernel */
        while (i != nr_4k_pages) {
            p = kbase_mem_alloc_page(pool);     //<------- 3.
            ...
        }
        ...
    }
    ...
}

The input argument kbase_mem_pool is a memory pool managed by the kbase_context object associated with the driver file that is used to allocate the GPU memory. As the comments suggest, the allocation is actually done in tiers. First the pages will be allocated from the current kbase_mem_pool using kbase_mem_pool_remove_locked (1 in the above). If there is not enough capacity in the current kbase_mem_pool to meet the request, then pool->next_pool is used to allocate the pages (2 in the above). If even pool->next_pool does not have the capacity, then kbase_mem_alloc_page is used to allocate pages directly from the kernel via the buddy allocator (the page allocator in the kernel).
When freeing a page, the same happens: kbase_mem_pool_free_pages first tries to return the pages to the kbase_mem_pool of the current kbase_context, if the memory pool is full, it’ll try to return the remaining pages to pool->next_pool. If the next pool is also full, then the remaining pages are returned to the kernel by freeing them via the buddy allocator.
As noted in “Corrupting memory without memory corruption,” pool->next_pool is a memory pool managed by the Mali driver and shared by all the kbase_context. It is also used for allocating page table global directories (PGD) used by GPU contexts. In particular, this means that by carefully arranging the memory pools, it is possible to cause a freed backing page in a kbase_va_region to be reused as a PGD of a GPU context. (The details of how to achieve this can be found in the section, “Breaking out of the context.”) As the bottom level PGD stores the physical addresses of the backing pages to GPU virtual memory addresses, being able to write to a PGD allows me to map arbitrary physical pages to the GPU memory, which I can then read from and write to by issuing GPU commands. This gives me access to arbitrary physical memory. As physical addresses for kernel code and static data are not randomized and depend only on the kernel image, I can use this primitive to overwrite arbitrary kernel code and gain arbitrary kernel code execution.
The exploit for Pixel 6 can be found here with some setup notes.

Conclusions

In this post I’ve shown how root cause analysis of CVE-2022-36449 revealed the unusual memory management in KBASE_MEM_TYPE_IMPORTED_USER_BUF memory region, which then led to the discovery of another vulnerability. This shows how important it is to carry out root cause analysis of existing vulnerabilities and to use the knowledge to identify new variants of an issue. While CVE-2022-46395 seems very difficult to exploit due to a very tight race window and the limited write primitive that can be achieved by the bug, I’ve demonstrated how techniques from Racing against the clock—hitting a tiny kernel race window can be used to exploit seemingly impossible race conditions, and how UAF in memory pages can be exploited reliably even with a very limited write primitive.

Written by

Man Yue Mo

@m-y-mo
