Three bugs in the Go MySQL Driver

Although GitHub.com is still a Rails monolith, over the past few years we’ve begun the process of extracting critical functionality from our main application, by rewriting some of the code in Go—mostly addressing the pieces that need to run faster and more reliably than what we can accomplish with Ruby. Last year, we deployed a new authorizations service in production, authzd, which powers the “fine-grained authorizations” feature that we announced in GitHub Satellite 2019.

This has been a significant milestone and an interesting challenge, because authzd is our first Go service that reads from the production MySQL databases as part of a web request. In the past, we’ve deployed other Go services in our infrastructure that read and write to MySQL, but they’re either internal management services (such as our Search cluster manager, manticore), or async batch jobs (such as gitbackups, which takes care of scheduling Git repository backups). authzd is called several times during a normal request to our Rails monolith, meaning that its requirements for performance and reliability are much more stringent.

Adding to this challenge, authzd is deployed to our Kubernetes clusters, where we’ve been experiencing issues with high latencies when opening new TCP connections, something that particularly affects the pooling of connections in the Go MySQL driver. One of the most dangerous lies that programmers tell themselves is that the network is reliable, because, well, most of the time the network is reliable. But when it gets slow or spotty, that’s when things start breaking, and we get to find out the underlying issues in the libraries we take for granted.

Here’s what it took, from a MySQL point of view, to get authzd ready to serve all our production traffic while meeting our availability SLOs.

For a long time, "Invalid connection (unexpected EOF)" was the most elusive of all known Go MySQL bugs. It’s been over two years since I initially diagnosed and reported the bug upstream: we first came across this problem when deploying the initial versions of our repository backup orchestrator (gitbackups) to production. At the time, there was no consensus on how to fix it on the MySQL driver, so we fixed gitbackups with a workaround in the application’s code. Last year, when doing our first authzd deploys to production, the issue was back in full effect: hundreds of Invalid connection errors per minute were dramatically increasing authzd‘s error response rate. This forced me to address the issue again, and I finally landed a fix upstream that solves the issue without having to change any application code. Let’s dive into the issue and its fix.

The job of a Go SQL driver is to provide a simple primitive to the database/sql package that comes in the Go standard library, a “SQL connection”. The connections that a driver provides are stateful, and cannot be used concurrently, because this is the default behavior for the connections of all major SQL servers (including MySQL and Postgres). This is where the database/sql package comes in: it manages the access and lifetime of these connections. The DB struct in the package, which is the entry point for all operations you can perform on a SQL database, is an abstraction over a connection pool, full of individual connections provided by the driver. Hence, calling methods like (*DB).Query or (*DB).Exec involves quite a bit of complex logic: polling the connection pool for a connection that is active but idle, or calling the underlying Driver to create a new connection if all the existing ones are busy, and then executing the command or query and returning the connection back to the pool, or discarding it if the pool is full.

The “unexpected EOF” crash we experienced in both gitbackups and authzd always happens when taking a connection out of the connection pool and trying to perform a query on it. The reason was obvious simply by reading the MySQL server logs. The server was closing connections that spent too long in Go’s sql.(*DB) pool because they reached their idle timeout. Keep in mind, we run our production MySQL clusters with a pretty aggressive idle timeout (30s) to ensure we never have too many connections open at any given time. And yet, the fact that this invalid connection error was being reported to the app was puzzling (and a problem, because our service was continuously crashing).

It’s common for TCP connections to be interrupted. The database/sql package is designed to handle an interruption in any of the hundreds of simultaneous connections that sit in a (*DB) pool at any time, and the specific driver implementation is supposed to help with this. A driver connection can become unhealthy for a multitude of reasons, whether it’s because it’s been closed, it received a bad packet, or any of the many things that can go wrong with a SQL connection. Whenever a driver detects that a connection has become unhealthy, it’s supposed to return driver.ErrBadConn on the next call to any of the methods in the connection.

ErrBadConn is the magic word that signals the database/sql package that this stateful connection is no longer valid. If the connection was in the pool, it needs to be removed from the pool, or if the connection was just pulled from the pool to perform a query, it must be discarded and a new connection must be pulled from the pool (or created) so the query can be performed. With this logic in mind, it’s expected that calling (*DB).Query would never fail with an “invalid connection” error, because even if the library attempted to perform the query in an invalid connection, driver.ErrBadConn would be returned and cause the query to be retried in another connection, transparently, and without the user noticing.

So, what’s going on in authzd to cause these “invalid connection” errors?

There’s a nuanced mismatch between the TCP protocol and the MySQL wire protocol overlaid on top. A TCP connection is full-duplex, where data can be flowing in each direction independently of the other direction, while the overlaid MySQL protocol on top becomes fully client-managed once it’s in its Command Phase. A MySQL server only sends a packet to a MySQL client in response to a packet from the client. This becomes an issue when the server closes an active connection in the Command Phase, because it reached its idle timeout, or because connections are actively being pruned by processes such as pt-kill. Let’s look at a network diagram:

Figure 1: A network flow diagram representing the packets sent between the Go MySQL driver and the MySQL server.

In this reproduction of the bug, we can see a standard TCP handshake, followed by a request and response pair at the MySQL level. We then sleep for several seconds. After a while without sending requests to the MySQL server, we reach the server-side timeout and the MySQL server performs an active close to our socket. When a TCP server closes a socket, the server’s kernel sends a [FIN, ACK] pair to the client, which means that the server is finished sending data. The client’s kernel acknowledges the [FIN, ACK] with an [ACK] but it doesn’t close its side of the connection—this is what we mean by TCP being full-duplex. The write side, client -> server, of the connection is independent, and must be explicitly closed by calling close in the client.

In most network protocols on top of TCP, this isn’t an issue. The client is performing reads from the server, and as soon as it receives a [SYN, ACK], the next read returns an EOF error, because the Kernel knows that the server won’t write more data to this connection. However, as discussed earlier, once a MySQL connection is in its Command Phase, the MySQL protocol is client-managed. The client only reads from the server after it sends a request, because the server only sends data in response to requests from the client.

The previous network diagram clearly shows the practical effects of this. After the sleeping period, we send a request to the server and this write succeeds because our side of the connection is still open. The server consequently answers our request with a [RST] packet because it’s actually closed—we just don’t know about it yet. And then, when our client attempts to read the response from the MySQL server, it belatedly finds out that the connection is invalid as it receives an EOF error.

This answers why our connection is crashing, but not why our application code is crashing with it. Our MySQL connection is no longer valid, and we found out about it (better late than never), so why doesn’t our MySQL driver return driver.ErrBadConn when this happens? And why doesn’t it allow database/sql to retry our query in a brand new connection? Sadly, because transparently retrying the query is not safe to do in the general case.

The sequence of events depicted in the previous network diagram is very frequent. In our production MySQL clusters, it happens thousands of times per minute, particularly during off-peak hours when our service is mostly idle and the timeouts are reached. But that’s far from the only thing that could cause a connection to be closed.

What would happen if we performed an UPDATE in a perfectly healthy connection, MySQL executed it, and then our network went down before it could reply to us? The Go MySQL driver would also receive an EOF after a valid write. But if it were to return driver.ErrBadConn, database/sql would run the UPDATE statement on a new connection. Disaster! Data corruption! And what a thoroughly annoying place to be in: we know that in the common case (when MySQL kills our connection), it’s safe to retry these queries. There was no error when writing the query to the network, but we know MySQL didn’t receive it — let alone executed it. But we must assume the worst, that the query did make it to the server. And hence, returning driver.ErrBadConn is not safe.

So, how do we go about fixing this? The most obvious solution, and the one we applied on gitbackups back in the day, is calling (*DB).SetConnMaxLifetime on our client to set the max lifetime of MySQL connections to a value lower than our MySQL cluster’s idle timeout. This is far from ideal. For starters, SetConnMaxLifetime sets the maximum duration of any connection on the client, not its maximum idle duration. That means that database/sql will continuously kill connections when they’ve lived that long, even if the connections are being actively used and could not trigger the server’s idle timeout. The database/sql package does not provide a “maximum idle duration” API for databases, because not all SQL servers implement the concept of idle timeouts. Ah, the miseries of abstraction. In practice, this fix works OK except for the needless connection churn, and cases where the MySQL server is actively prunning connections, which this workaround cannot detect.

Clearly, the optimal solution would be checking for a connection’s health once it’s pulled from the connection pool, and before we attempt to write any requests to it. This was unfortunately not possible until the introduction of SessionResetter in Go 1.10: before that interface was available, there was no way to know when a connection was being returned to the pool, which is why the bug stalled for almost 2 years until we could come up with an adequate fix.

There are two ways to check the health of that connection: at the MySQL level, or at the TCP level. A MySQL health check involves sending a PING packet and waiting for its response. It’s always safe to return driver.ErrBadConn because the ping packet doesn’t perform write operations in MySQL (one would hope). However, there is the drawback of adding arbitrary latency to the first operation performed on a connection fresh off the pool. That’s a bit spooky, because connections are sent and returned to the pool often in a Go application. Consequently, we went with the cheaper and simpler fix which is to simply check whether the MySQL server has closed its side of the connection at the TCP level.

Performing this check is very inexpensive, all we have to do is a non-blocking read on our connection before we attempt any writes. If the server has closed its side of the connection, we’ll get an EOF right away. If the connection is still open, the read also returns immediately but with an EWOULDBLOCK error, signaling that no data exists to be read (yet). Now, the good news is that all sockets in a Go program are already set to non-blocking mode. Don’t be fooled by the elegant abstraction of Goroutines. Under the hood, the user-land Go scheduler uses an async event loop to put Goroutines to sleep and wake them once they have data to read (how quaint). The bad news is that we don’t get to perform non-blocking reads by calling methods such as net.Conn.Read, because the scheduler will put us right to sleep (again, the elegant abstraction of Goroutines). The proper interface to perform this non-blocking read wasn’t introduced until Go 1.9: (*TCPConn).SyscallConn gives us access to the underlying file descriptor so we can use the read system call directly.

Armed with this new API, I was able to implement a connection health check that solved the “stale connections” issue with less than five microseconds of overhead. A non-blocking read is very quick because, huh, that’s the point of non-blocking reads—they don’t block.

After deploying the fix in production, all the “Invalid Connection” needles disappeared right away, resulting in our first “9” of availability for the service.

Figure 2: Client-side needles and retries in authzd after a deploy

• If your MySQL server uses idle timeouts, or is actively pruning connections, you don’t need to call (*DB).SetConnMaxLifetime in your production services. It’s no longer needed as the driver can now gracefully detect and retry stale connections. Setting a max lifetime for connections simply causes unnecessary churn by killing and re-opening healthy connections.

• A good pattern to manage high-throughput access to MySQL is configuring your sql.(*DB) pool ((*DB).SetMaxIdleConns and (*DB).SetMaxOpenConns) with values that support your peak-hour traffic for the service, and making sure that your MySQL server is actively pruning idle connections during off-hours. These pruned connections are detected by the MySQL driver and re-created when necessary.

When we put a service like authzd as a dependency in the standard request path for our monolith, we’ve fundamentally added its response latency to the response latency of all the requests of our app, or for the requests that perform some kind of authorization—which is a lot of them. It’s crucial to ensure that authzd requests never take more time than what we’ve allotted for them, or they could very easily lead to a site-global performance degradation.

From the Rails side, this means being very careful with how we perform RPC requests to the service and how we time them out. In the Go server side, it means one thing, Context. The context package was introduced to the standard library back in Go 1.7, although its API was already available for years as a separate library. Its premise is simple, pass a context.Context to every single function that is involved in the life-cycle of your service’s requests to make your service cancellation-aware. Each incoming HTTP request provides a Context object, which becomes canceled if the client disconnects early, and on top of it you can extend your Context with a deadline. This allows us to manage early request cancellation and request timeouts using a single API.

The engineering team in charge of developing the new service did a stellar job of ensuring that all methods in authzd were passing around a Context, including the methods that perform queries to MySQL. Passing a Context to these methods is fundamental because they’re the most expensive part of our request life-cycle, and we need to ensure the database/sql query methods are receiving our request’s Context so they can cancel our MySQL queries early if they’re taking too long.

In practice, however, it seemed like authzd wasn’t taking request cancellations or timeouts into account:

Figure 3: In-service response times for an authzd deployment. The resolver’s timeout was set to 1000ms—you can tell from the helpful red line I’ve drawn in the graph, but definitely not from the many random spikes that climb all the way to 5000ms.

Just from looking at these metrics, it’s quite clear that even though we’re successfully propagating our request’s Context throughout our application’s code, there’s a point during the lifetime of some requests where cancellation is simply ignored. Finding this spot through code review can be rather laborious, even when we strongly suspect that the source of the timeouts must be the Go MySQL driver, since it’s the only part of our service that performs external requests. In this case, I captured a stack trace from a production host to find out where the code was blocking. It took several tries to capture a stack trace that seemed relevant, but once I had one that was blocking on a QueryContext call, the issue became immediately obvious:

0  0x00000000007704cb in net.(*sysDialer).doDialTCP
    at /usr/local/go/src/net/tcpsock_posix.go:64
 1  0x000000000077041a in net.(*sysDialer).dialTCP
    at /usr/local/go/src/net/tcpsock_posix.go:61
 2  0x00000000007374de in net.(*sysDialer).dialSingle
    at /usr/local/go/src/net/dial.go:571
 3  0x0000000000736d03 in net.(*sysDialer).dialSerial
    at /usr/local/go/src/net/dial.go:539
 4  0x00000000007355ad in net.(*Dialer).DialContext
    at /usr/local/go/src/net/dial.go:417
 5  0x000000000073472c in net.(*Dialer).Dial
    at /usr/local/go/src/net/dial.go:340
 6  0x00000000008fe651 in github.com/github/authzd/vendor/github.com/go-sql-driver/mysql.MySQLDriver.Open
    at /home/vmg/src/gopath/src/github.com/github/authzd/vendor/github.com/go-sql-driver/mysql/driver.go:77
 7  0x000000000091f0ff in github.com/github/authzd/vendor/github.com/go-sql-driver/mysql.(*MySQLDriver).Open
    at <autogenerated>:1
 8  0x0000000000645c60 in database/sql.dsnConnector.Connect
    at /usr/local/go/src/database/sql/sql.go:636
 9  0x000000000065b10d in database/sql.(*dsnConnector).Connect
    at <autogenerated>:1
10  0x000000000064968f in database/sql.(*DB).conn
    at /usr/local/go/src/database/sql/sql.go:1176
11  0x000000000065313e in database/sql.(*Stmt).connStmt
    at /usr/local/go/src/database/sql/sql.go:2409
12  0x0000000000653a44 in database/sql.(*Stmt).QueryContext
    at /usr/local/go/src/database/sql/sql.go:2461
[...]

The issue is that we’re not propagating our request’s Context as deeply as we initially thought. Although we’re passing the Context to QueryContext when performing SQL queries, and this context is being used to actually perform and timeout the SQL queries, there’s a corner case in the database/sql/driver API we’re missing. When we’re trying to perform a query but no connections are available in our connection pool, we need to create a new SQL connection by calling driver.Driver.Open(), but this interface method doesn’t take a context.Context!

The previous stack trace clearly shows how in (8) we stop propagating our Context and simply call (*MysqlDriver).Open() with the DSN to our database. Opening a MySQL connection isn’t a cheap operation: it involves doing a TCP open, SSL negotiation (if we’re using SSL), performing the MySQL handshake and authentication, and setting any default connection options. In total, there are at least six network round trips which do not obey our request timeout, because they’re not Context-aware.

What do we do about this? The first thing we tried is setting the timeout value on our connection’s DSN, which configures the TCP open timeout that (*MySQLDriver).Open uses. But this isn’t good enough, because TCP open is just the first step of initializing the connection. The remaining steps (MySQL handshake, etc) weren’t obeying any timeouts, so we still had requests going way past the global 1000ms timeout.

The proper fix involved refactoring a large chunk of the Go MySQL driver. The underlying issue was introduced back in the Go 1.8 release, which implemented the QueryContext and ExecContext APIs. Although these APIs could be used to cancel SQL queries because they’re Context aware, the driver.Open method wasn’t updated to actually take a context.Context argument. This new interface was only added two patches later, in Go 1.10: a new Connector interface was introduced, which had to be implemented separately from the driver itself. Hence, supporting both the old driver.Driver and driver.Connector interfaces required major changes in the structure of any SQL driver. Because of this complexity, and a lack of awareness that the old Driver.Open interface can easily lead to availability issues, the Go MySQL driver never got around to implementing the new interface.

Fortunately, I had the time and patience to undertake that refactoring. After shipping the resulting Go MySQL driver with the new Connector interface in authzd, we could verify on stack traces that the context passed to QueryContext was being propagated when creating new MySQL connections:

0  0x000000000076facb in net.(*sysDialer).doDialTCP
    at /usr/local/go/src/net/tcpsock_posix.go:64
 1  0x000000000076fa1a in net.(*sysDialer).dialTCP
    at /usr/local/go/src/net/tcpsock_posix.go:61
 2  0x0000000000736ade in net.(*sysDialer).dialSingle
    at /usr/local/go/src/net/dial.go:571
 3  0x0000000000736303 in net.(*sysDialer).dialSerial
    at /usr/local/go/src/net/dial.go:539
 4  0x0000000000734bad in net.(*Dialer).DialContext
    at /usr/local/go/src/net/dial.go:417
 5  0x00000000008fdf3e in github.com/github/authzd/vendor/github.com/go-sql-driver/mysql.(*connector).Connect
    at /home/vmg/src/gopath/src/github.com/github/authzd/vendor/github.com/go-sql-driver/mysql/connector.go:43
 6  0x00000000006491ef in database/sql.(*DB).conn
    at /usr/local/go/src/database/sql/sql.go:1176
 7  0x0000000000652c9e in database/sql.(*Stmt).connStmt
    at /usr/local/go/src/database/sql/sql.go:2409
 8  0x00000000006535a4 in database/sql.(*Stmt).QueryContext
    at /usr/local/go/src/database/sql/sql.go:2461
[...]

Note how (*DB).conn now calls our driver’s Connector interface directly, passing the current Context. Likewise, it was very clear that the global request timeout was being obeyed for all requests:

Figure 4: Resolver response times with a timeout set at 90ms. You can tell that the Context is being respected because the 99th percentile looks more like a barcode than a graph

• You don’t need to change your sql.(*DB) initialization to use the new sql.OpenDB API. Even when calling sql.Open in Go 1.10, the database/sql package detects the Connector interface and new connections are created with Context awareness.

• However, changing your application to use sql.OpenDB with a mysql.NewConnector has several benefits, most notably the fact that the connection options for your MySQL cluster can be configured out of a mysql.Config struct, without requiring to compose a DSN.

• Don’t set a ?timeout= (or its mysql.(Config).Timeout equivalent) on your MySQL driver. Having a static value for a dial timeout is a bad idea, because it doesn’t take into account how much of your current request budget has been spent.

• Instead, make sure that every SQL operation in your app is using the QueryContext / ExecContext interfaces, so they can be canceled based on your current request’s Context regardless of whether the connection is failing to dial or the query is slow to execute.

Last, here’s a very serious security issue caused from a data race, which is as devious as it is subtle. We’ve talked a lot about how sql.(*DB) is simply a wrapper around a pool of stateful connections, but there’s a detail we haven’t discussed. Performing a SQL query, either via (*DB).Query or (*DB).QueryContext, which is one of the most common operations you can do on a database, actually steals a connection from the pool.

Unlike a simple call to (*DB).Exec, which has no actual data returned from the database, (*DB).Query may return one or more rows, and in order to read these rows from our app code, we must take control of the stateful connection where those rows will be written to by the server. That’s the purpose of the sql.(*Rows) struct, which is returned from each call to Query and QueryContext: it wraps a connection we’re borrowing from the pool so we can read the individual Rows from it. And this is why it’s critical to call (*Rows).Close once we’re done processing the results from our query, otherwise the stolen connection never returns to the connection pool.

The flow of a normal SQL query with databaseb/sql has been identical since the very first stable release of Go. Something like:

rows, err := db.Query("SELECT a, b FROM some_table")
if err != nil {
    return err
}
defer rows.Close()

for rows.Next() {
    var a, b string
    if err := rows.Scan(&a, &b); err != nil {
        return err
    }
    ...
}

That’s straightforward in practice: (*DB).Query returns a sql.(*Rows), which is stealing a connection from the SQL pool—the connection on which we’ve performed the query. Subsequent calls to (*Rows).Next will read a result row from the connection, whose contents we can extract by calling (*Rows).Scan, until we finally call (*Rows).Close and then any further calls to Next will return false and any calls to Scan will return an error.

Under the hood, the implementation involving the underlying driver is more complex: the driver returns its own Rows interface, which is wrapped by sql.(*Rows). However, as an optimization the driver’s Rows doesn’t have a Scan method, it has a Next(dest []Value) error iterator. The idea behind this iterator is that it returns Value objects for each column in the SQL query, so calling sql.(*Rows).Next simply calls driver.Rows.Next under the hood, keeping a pointer to the values returned by the driver. Then, when the user calls sql.(*Rows).Scan, the standard library converts the driver’s Value objects into the target types that the user passed as arguments to Scan. This means that the driver doesn’t need to perform argument conversion (the Go standard library takes care of it), and that the driver can return borrowed memory from its rows iterator instead of allocating new Values, since the Scan method converts the memory anyway.

As you may guess right away, the security issue we’re dealing with is caused by this borrowed memory. Returning temporary memory is actually an important optimization, which is explicitly encouraged in the driver contract, and works well in practice for MySQL because it lets us return pointers to the connection buffer where we’re reading results directly from MySQL. The row data for a SQL query as it comes off the wire can be passed directly to the Scan method, which will then parse its textual representation into the types (int, bool, string, etc) that the user is expecting. And this has always been safe to do, because we’re not overwriting our connection buffer until the user calls sql.(*Rows).Next again, so no data races are possible.

…This was the case, at least, until the introduction of the QueryContext APIs in Go 1.8. With these new interfaces, it’s now possible to call db.QueryContext with a Context object that will interrupt a query early—we’ve discussed this at length in this post. But the fact that a query can be interrupted or timed out while we’re scanning its resulting rows opens up a serious security vulnerability. Any time a SQL query is interrupted while inside a sql.(*Rows).Scan call, the driver overwrites the underlying MySQL connection buffer, and Scan returns corrupted data.

This may seem surprising, but it makes sense if we understand that canceling our Context means canceling the SQL query in the client, not in the MySQL server. The MySQL server continues serving the results of the query through our active MySQL connection, so if we want to be able to reuse the connection where a query has been canceled, we must first “drain” all the result packets that the server sent. To drain and discard all the remaining rows in the query, we need to read these packets into our connection buffer, and since query cancellation can happen at the same time as a Scan call, we overwrite the memory behind the Values the user is scanning from. The result is, with an extremely high likelihood, corrupted data.

This race is certainly spooky as described so far, but here’s the scariest thing of it all: in practice, you won’t be able to tell if the race is happening or has happened in your app. In the previous example of rows.Scan usage, despite the fact that we’re performing error checking, there is no reliable way to tell if our SQL query was canceled because our Context expired. If context cancellation has happened inside the rows.Scan call (for example, where it needs to happen for this data race to trigger), the row values are scanned, potentially with corrupted data, but no error is returned because rows.Scan only checks if the rows are closed once when entering the function. Hence, when the race triggers we’re getting back corrupted data without an error return. We won’t be able to tell that the query has been canceled until our next call to rows.Scan, but that call never happens because rows.Next() returns false, again without reporting an error.

The only way to tell whether scanning the rows of our SQL query has finished cleanly or whether the query has been canceled early is checking the return value of rows.Close. And we’re not doing that because the rows are being closed in a defer statement. Oof. A quick Code Search for rows.Close() on GitHub shows that pretty much nobody is explicitly checking the return value of rows.Close() in their Go code. This was actually safe to do before the QueryContext APIs were introduced, because rows.Scan would always catch any errors, but since Go 1.8, this isn’t correct. Even after this data race is fixed in the Go MySQL driver, you won’t be able to tell whether you’ve scanned all the rows of your SQL query unless you check the return value of rows.Close(). So update your linters accordingly.

I can think of several ways to fix this race. The most obvious is to always clone memory when returning from driver.Rows.Next, but this is also the slowest. The whole point of the driver contract is that the driver doesn’t allocate memory when calling driver.Rows.Next, because the memory allocation is delayed until the user calls sql.(*Rows).Scan. If we allocate in Next, we’re allocating twice for each row, which means that this bug fix would cause a significant performance regression. The Go MySQL maintainers were not OK with this, and I wasn’t either. Other similar approaches such as truncating the underlying connection buffer when calling sql.(*Rows).Close were rejected for the same reason—they potentially allocate memory on each Scan. All these rejected fixes led to a stalemate between the maintainers which caused this critical bug to become stale for over six months. I personally find it terrifying that such a bug can go unfixed for so long, so I had to come up with a hot new take to fix the issue in our production hosts without causing a performance regression.

The first thing I attempted was “draining” the MySQL connection without using the underlying connection buffer. If we don’t write to the connection buffer, then the data race won’t occur. This quickly became a nightmare of spaghetti code, because MySQL can send lots of packets which we must drain, and these packets all have different sizes, defined in their headers. Partially parsing these headers without a buffer was not pretty.

After some more thought, I finally came up with a solution which was extremely simple and fast enough to be eventually merged upstream—double buffering. In ancient Computer Graphics stacks, one would write individual pixels directly on a frame buffer, and the monitor would simultaneously read the pixels at its given refresh rate. When the frame buffer was being written to while the screen was reading from it, a graphical glitch occurred—what we commonly call flickering. Flickering is fundamentally a data race which you can see with your own eyes, and you’ll agree that’s a pretty cool concept. The most straightforward way to fix flickering in computer graphics is to allocate two frame buffers: one buffer that the screen will be reading from (the front buffer), and another buffer that the graphics processor will be writing to (the back buffer). When the graphics processor is done rendering a frame, we atomically flip the back buffer with the front buffer, so the screen never reads a frame that’s currently being composed.

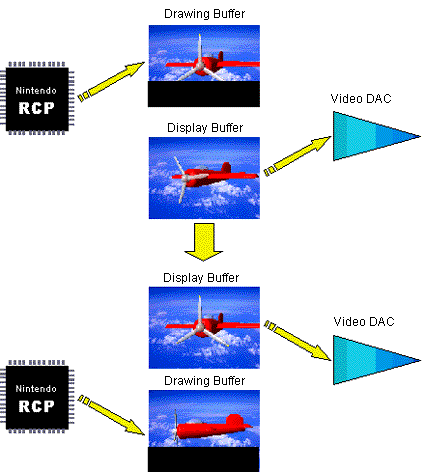

Figure 5: Double buffering in the Nintendo 64 graphics stack. If this is good enough for Mario, it’s good enough for the MySQL driver

This situation sounds a lot like what’s happening with the connection buffer on the MySQL driver, so why not fix it in the same way? In our case, when our driver.Rows struct is being closed because a query was canceled early, we swap our connection buffer with a background buffer, so that the user can still call sql.Rows.Scan on the front buffer while we’re draining the MySQL connection into the back buffer. The next time a SQL query is performed on the same connection, we’re going to continue reading into the background buffer, until the Rows are closed again and we flip the buffers to their original positions. This implementation is trivial, and although it allocates memory, it only does so once for the lifetime of a MySQL connection, so the allocation is easily amortized. We further optimized this corner case by delaying the allocation of the back buffer until the first time we need to drain data into it. In the common case where no queries are canceled early in a MySQL connection, no extra allocations are performed.

After carefully crafting some benchmarks to ensure that the double buffering approach wasn’t causing performance regressions in any cases, I finally landed the bug fix upstream. Unfortunately, we have no way to check how often we’ve performed corrupted reads in the past because of this bug, but it’s probably been quite a few because, despite the subtlety in its origin, it’s surprisingly easy to trigger.

• Always do an explicit check in for the error return in (*Rows).Close. It’s the only way to detect whether the SQL query has been interrupted during scanning. However, do not remove the defer rows.Close() call in your app, as it’s the only way the Rows get closed if a panic or early return happens during your scanning. Calling (*Rows).Close several times is always safe.

• Never use (*Rows).Scan with a sql.RawBytes target. Even though the Go MySQL driver is now much more resilient, accessing RawBytes can and will fail with other SQL drivers if your query is cancelled early. You will, most likely, read invalid data if that happens. The only difference between scanning into []byte and sql.RawBytes is that the raw version won’t allocate extra memory. This tiny optimization isn’t worth the potential data race in a Context-aware application.

Deploying code in a new programming language to production is always a challenge, particularly at the scale GitHub operates. The throughput and complexity of our MySQL usage patterns means we’ve spent many years tweaking our MySQL client for Ruby, and now we’re excited to do the same for the Go MySQL driver. The fixes we’ve upstreamed as part of our first Go deployment are now generally available as part of the 1.5.0 release of the Go MySQL driver, and we will continue to contribute more fixes and functionality to the driver as we expand our production usage of Go.

Thanks to the Go MySQL maintainers, @methane and @julienschmidt, for their help reviewing and landing these patches!
